Tipi ta 'Prodott: Tagħmir tal-adapter tal-Flanġ SAE idrawliku 1DFS9-RN minkeb
Istandards tal-Industrija: SAE J518, ISO 6162 DIN 2353, ISO 8434-1
Konnessjoni ta 'l-istil E sa F: 90 ° TIP TA' BITE TAT-TAGĦMIL B'XEJN METRIKU / H-SERJA FLANG ISO 6162-2
Forma: minkeb, dritta, blokka eċċ.
Klassifikazzjoni tal-pressjoni operattiva: kodiċi SAE 61 huwa 2.5 sa 31.5 Mpa; Il-kodiċi SAE 62 huwa 40 Mpa.
Materjal tal-Fittings: Brass; Azzar tal-karbonju; Stainless Steel
Applikazzjoni: Tagħmir Agrikoltura, Proċess tal-Karozzi, Trasferiment Kimiku, Tagħmir tal-Kostruzzjoni, Trasferiment tal-Fjuwil, Idrawliku, Tagħmir tal-Manifattura, Baħar, Immaniġġjar tal-Materjal, Tagħmir Mobbli, Qasam taż-Żejt, Ippakkjar, Trasport

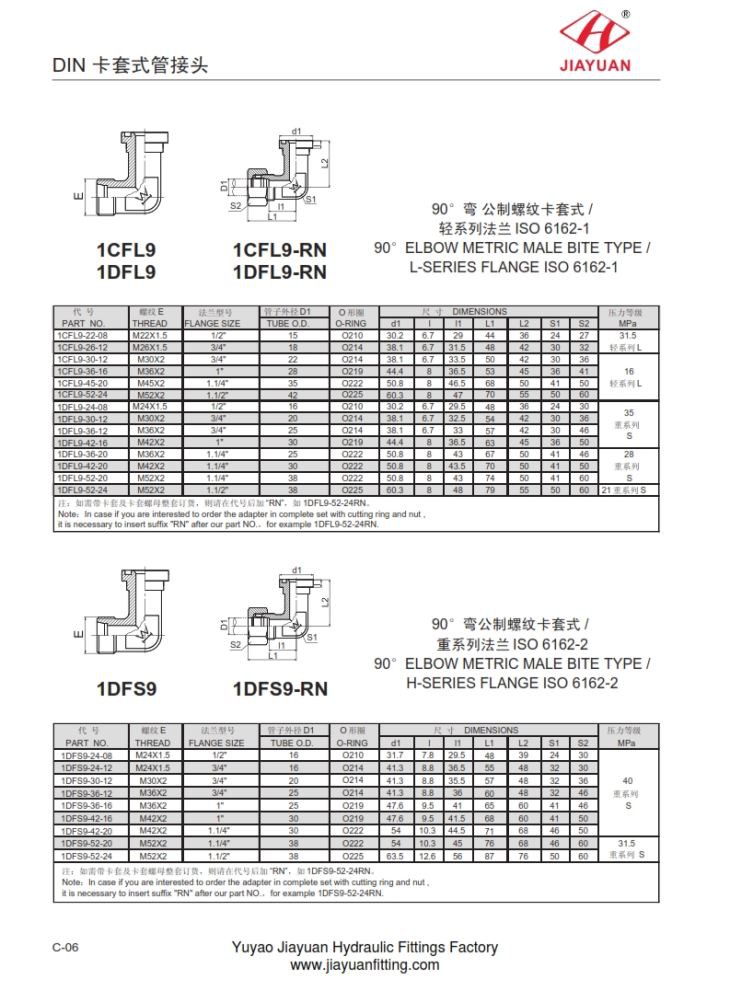

1DFS9-RN Gdim tal-minkeb metrika tat-tip H tal-ħanek tas-serje H ISO 6162-2 Dimensjoni Tabella tad-Daqs tat-tabella kif ġej
PARTI NRU. | E TAN | DAQS TAL-FLANG | D1 | O O-RING | Dimensjonijiet | MPa | ||||||
IT-TUBE OD | d1 | l | l1 | L1 | L2 | S1 | S2 | |||||
1DFS9-24-08 | M24X1.5 | 1/2 " | 16 | O210 | 31.7 | 7.8 | 29.5 | 48 | 39 | 24 | 30 | 40 S |
1DFS9-24-12 | M24X1.5 | 3/4 " | 16 | O214 | 41.3 | 8.8 | 36.5 | 55 | 48 | 32 | 30 | |
1DFS9-30-12 | M30X2 | 3/4 " | 20 | O214 | 41.3 | 8.8 | 35.5 | 57 | 48 | 32 | 36 | |
1DFS9-36-12 | M36X2 | 3/4 " | 25 | O214 | 41.3 | 8.8 | 36 | 60 | 48 | 32 | 46 | |
1DFS9-36-16 | M36X2 | 1 " | 25 | O219 | 47.6 | 9.5 | 41 | 65 | 60 | 41 | 46 | |
1DFS9-42-16 | M42X2 | 1 " | 30 | O219 | 47.6 | 9.5 | 41.5 | 68 | 60 | 41 | 50 | |
1DFS9-42-20 | M42X2 | 1.1 / 4 " | 30 | O222 | 54 | 10.3 | 44.5 | 71 | 68 | 46 | 50 | |
1DFS9-52-20 | M52X2 | 1.1 / 4 " | 38 | O222 | 54 | 10.3 | 45 | 76 | 68 | 46 | 60 | 31.5 S |
1DFS9-52-24 | M52X2 | 1.1 / 2 " | 38 | O225 | 63.5 | 12.6 | 56 | 87 | 76 | 50 | 60 |
