Tipi ta 'Prodott: Fittings-Tube Metric Thread-Fittings-Tube għall-konnettur tat-tapp
Istandards tal-Industrija: DIN 2353, ISO 8434-1, DIN 3861
Konnessjoni ta 'l-istil E sa F: 24 ° kon ta' tarf għal Bulkhead, imdawwar b'o-ring, weld-on / weld-in, stud, reducer
Forma: Tee eċċ.
Pressjoni tax-xogħol: 16-63 Mpa
Materjal tal-Fittings: Brass; Azzar tal-karbonju; Stainless Steel
Applikazzjoni: Tagħmir Agrikoltura, Proċess tal-Karozzi, Trasferiment Kimiku, Tagħmir tal-Kostruzzjoni, Trasferiment tal-Fjuwil, Idrawliku, Tagħmir tal-Manifattura, Baħar, Immaniġġjar tal-Materjal, Tagħmir Mobbli, Qasam taż-Żejt, Ippakkjar, Trasport

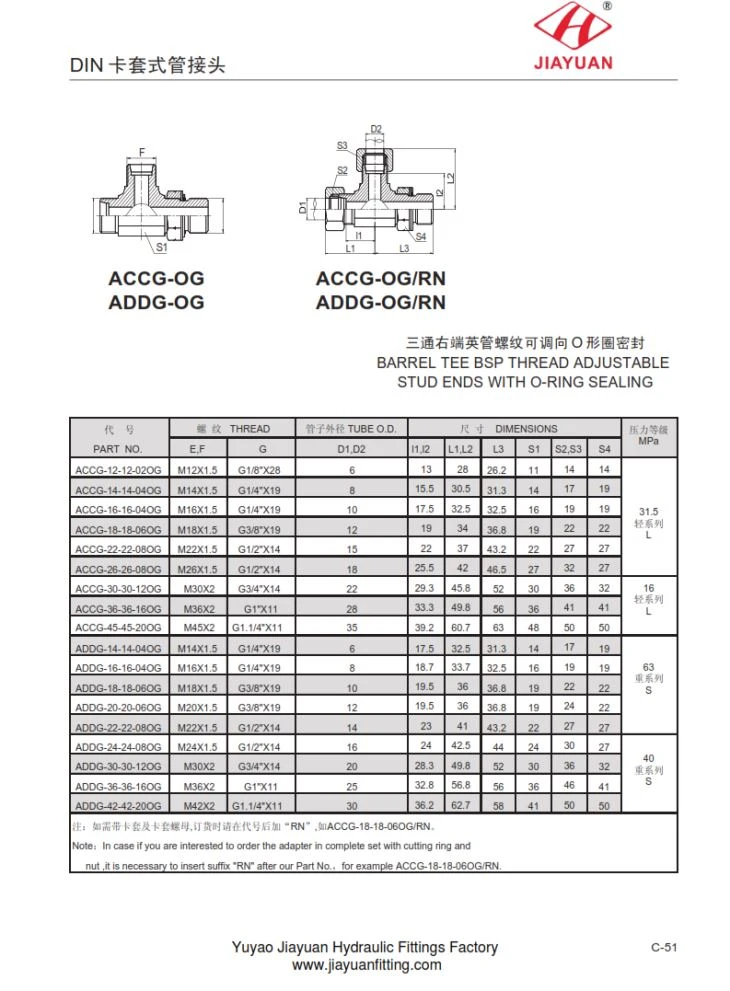

PARTI NRU. IT-TUBE TUBE OD
E, FG D1, D2
ACCG-12-12-02OG M12X1.5 G1 / 8 "X28 6
ACCG-14-14-04OG M14X1.5 G1 / 4 "X19 8
ACCG-16-16-04OG M16X1.5 G1 / 4 "X19 10
ACCG-18-18-06OG M18X1.5 G3 / 8 "X19 12
ACCG-22-22-08OG M22X1.5 G1 / 2 "X14 15
ACCG-26-26-08OG M26X1.5 G1 / 2 "X14 18
ACCG-30-30-12OG M30X2 G3 / 4 "X14 22
ACCG-36-36-16OG M36X2 G1 "X11 28
ACCG-45-45-20OG M45X2 G1.1 / 4 "X11 35
ADDG-14-14-04OG M14X1.5 G1 / 4 "X19 6
ADDG-16-16-04OG M16X1.5 G1 / 4 "X19 8
ADDG-18-18-06OG M18X1.5 G3 / 8 "X19 10
ADDG-20-20-06OG M20X1.5 G3 / 8 "X19 12
ADDG-22-22-08OG M22X1.5 G1 / 2 "X14 14
ADDG-24-24-08OG M24X1.5 G1 / 2 "X14 16
ADDG-30-30-12OG M30X2 G3 / 4 "X14 20
ADDG-36-36-16OG M36X2 G1 "X11 25
ADDG-42-42-20OG M42X2 G1.1 / 4 "X11 30
It-tags Popolari: Run Tee BSP H Fittings stud, iċ-Ċina, manifatturi, fornituri, tad-dwana, ram isfar, swagelok, Parker, Stauff, Brennan, azzar inossidabbli
