Dimensjonijiet u katalogu tat-tagħmir tal-pajpijiet BSP huwa l-istess minn fornituri differenti.
Tipi ta 'Materjal ta' tagħmir tal-pajpijiet bħal azzar li ma jissaddadx, ram isfar u plastik.
Applikazzjoni fittings tal-pajpijiet tal-ħajt tar-Renju Unit u l-Istati Uniti BSPP fil-fittings tal-pajpijiet ta 'strumentazzjoni u fittings tal-pajpijiet industrijali.
Adapters tal-pajpijiet BSP għall-weldjatura tal-sokit, maskili NPT, SAE ORB, maskili BSPT, maskili ORFS, konnettur tubu DIN 2353, o-ring metriku eċċ.
Forma ta 'adapter tal-pajpijiet BSPP bħal dritta, minkeb, Tee, Cross, Reducer.
Aħna wkoll jistgħu jfornu sa 2 pulzieri bsp fittings.

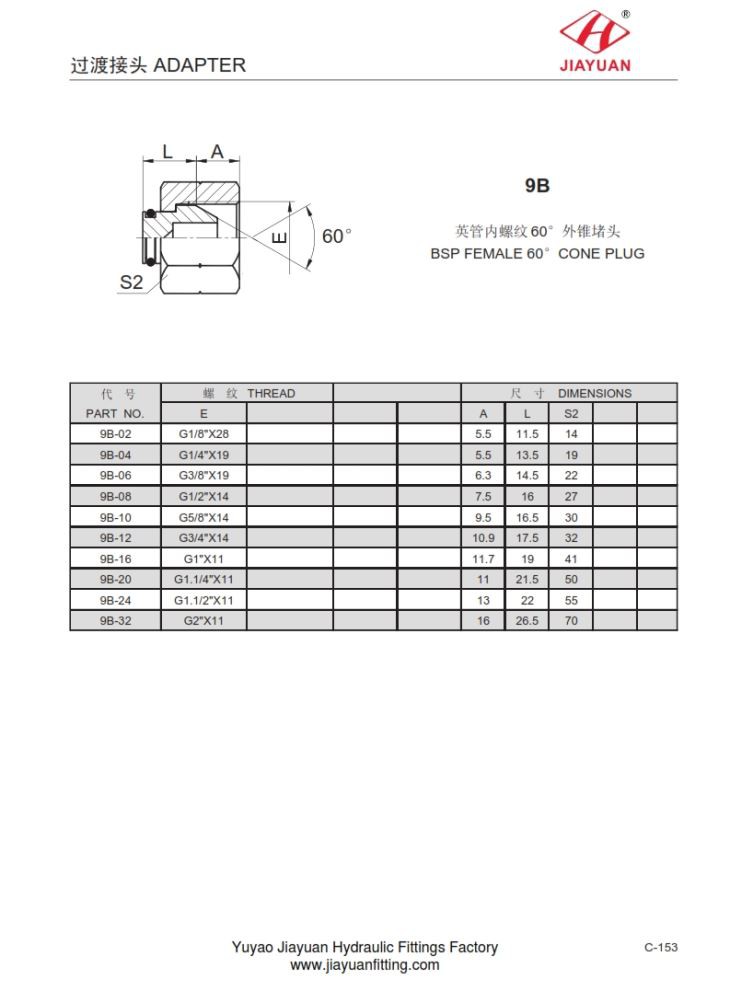

9B BSP FEMALE 60 ° KONG PLUG KONPUG PLUG daqs tal-konnettur kif ġej:
PARTI NRU. | TAN | Dimensjonijiet | |||||
E | A | L | S2 | ||||
9B-02 | G1 / 8 "X28 | 5.5 | 11.5 | 14 | |||
9B-04 | G1 / 4 "X19 | 5.5 | 13.5 | 19 | |||
9B-06 | G3 / 8 "X19 | 6.3 | 14.5 | 22 | |||
9B-08 | G1 / 2 "X14 | 7.5 | 16 | 27 | |||
9B-10 | G5 / 8 "X14 | 9.5 | 16.5 | 30 | |||
9B-12 | G3 / 4 "X14 | 10.9 | 17.5 | 32 | |||
9B-16 | G1 "X11 | 11.7 | 19 | 41 | |||
9B-20 | G1.1 / 4 "X11 | 11 | 21.5 | 50 | |||
9B-24 | G1.1 / 2 "X11 | 13 | 22 | 55 | |||
9B-32 | G2 "X11 | 16 | 26.5 | 70 | |||
