Tipi ta 'Prodott: Tagħmir tal-adapter tal-Flanġ SAE idrawliku 1FLW 1FSW-S
Istandards tal-Industrija: SAE J518, ISO 6162
Konnessjoni tal-istil E mal-F: SAE FLANGE / TUB WELD
Forma: minkeb, dritta, blokka eċċ.
Klassifikazzjoni tal-pressjoni operattiva: kodiċi SAE 61 huwa 2.5 sa 31.5 Mpa; Il-kodiċi SAE 62 huwa 40 Mpa.
Materjal tal-Fittings: Brass; Azzar tal-karbonju; Stainless Steel
Applikazzjoni: Tagħmir Agrikoltura, Proċess tal-Karozzi, Trasferiment Kimiku, Tagħmir tal-Kostruzzjoni, Trasferiment tal-Fjuwil, Idrawliku, Tagħmir tal-Manifattura, Baħar, Immaniġġjar tal-Materjal, Tagħmir Mobbli, Qasam taż-Żejt, Ippakkjar, Trasport

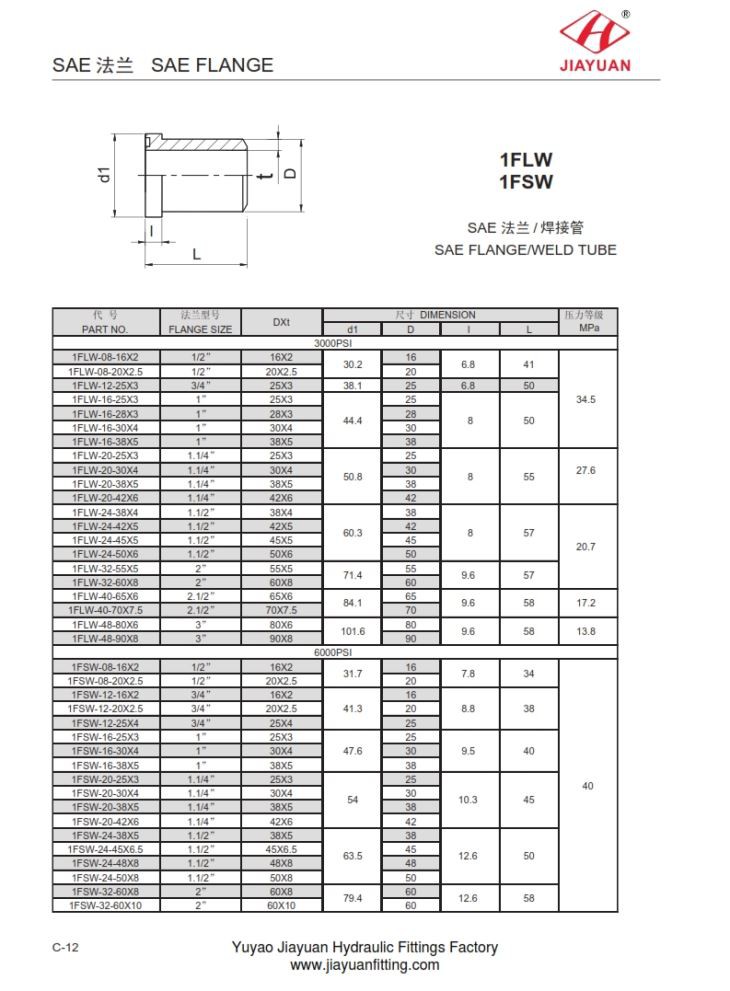

1FLW 1FSW SAE ħanek / tubu ta 'weldjatura Dimensjoni Tabella tal-qisien kif ġej
PARTI NRU. | DAQS TAL-FLANG | DXt | ID-DIMENSJONI | MPa | |||
d1 | D | l | L | ||||
3000PSI | |||||||
1FLW-08-16X2 | 1/2 | 16X2 | 30.2 | 16 | 6.8 | 41 | 34.5 |
1FLW-08-20X2.5 | 1/2 | 20X2.5 | 20 | ||||
1FLW-12-25X3 | 3/4 | 25X3 | 38.1 | 25 | 6.8 | 50 | |
1FLW-16-25X3 | 1 | 25X3 | 44.4 | 25 | 8 | 50 | |
1FLW-16-28X3 | 1 | 28X3 | 28 | ||||
1FLW-16-30X4 | 1 | 30X4 | 30 | ||||
1FLW-16-38X5 | 1 | 38X5 | 38 | ||||
1FLW-20-25X3 | 1.1 / 4 | 25X3 | 50.8 | 25 | 8 | 55 | 27.6 |
1FLW-20-30X4 | 1.1 / 4 | 30X4 | 30 | ||||
1FLW-20-38X5 | 1.1 / 4 | 38X5 | 38 | ||||
1FLW-20-42X6 | 1.1 / 4 | 42X6 | 42 | ||||
1FLW-24-38X4 | 1.1 / 2 | 38X4 | 60.3 | 38 | 8 | 57 | 20.7 |
1FLW-24-42X5 | 1.1 / 2 | 42X5 | 42 | ||||
1FLW-24-45X5 | 1.1 / 2 | 45X5 | 45 | ||||
1FLW-24-50X6 | 1.1 / 2 | 50X6 | 50 | ||||
1FLW-32-55X5 | 2 | 55X5 | 71.4 | 55 | 9.6 | 57 | |
1FLW-32-60X8 | 2 | 60X8 | 60 | ||||
1FLW-40-65X6 | 2.1 / 2 | 65X6 | 84.1 | 65 | 9.6 | 58 | 17.2 |
1FLW-40-70X7.5 | 2.1 / 2 | 70X7.5 | 70 | ||||
1FLW-48-80X6 | 3 | 80X6 | 101.6 | 80 | 9.6 | 58 | 13.8 |
1FLW-48-90X8 | 3 | 90X8 | 90 | ||||
6000PSI | |||||||
1FSW-08-16X2 | 1/2 | 16X2 | 31.7 | 16 | 7.8 | 34 | 40 |
1FSW-08-20X2.5 | 1/2 | 20X2.5 | 20 | ||||
1FSW-12-16X2 | 3/4 | 16X2 | 41.3 | 16 | 8.8 | 38 | |
1FSW-12-20X2.5 | 3/4 | 20X2.5 | 20 | ||||
1FSW-12-25X4 | 3/4 | 25X4 | 25 | ||||
1FSW-16-25X3 | 1 | 25X3 | 47.6 | 25 | 9.5 | 40 | |
1FSW-16-30X4 | 1 | 30X4 | 30 | ||||
1FSW-16-38X5 | 1 | 38X5 | 38 | ||||
1FSW-20-25X3 | 1.1 / 4 | 25X3 | 54 | 25 | 10.3 | 45 | |
1FSW-20-30X4 | 1.1 / 4 | 30X4 | 30 | ||||
1FSW-20-38X5 | 1.1 / 4 | 38X5 | 38 | ||||
1FSW-20-42X6 | 1.1 / 4 | 42X6 | 42 | ||||
1FSW-24-38X5 | 1.1 / 2 | 38X5 | 63.5 | 38 | 12.6 | 50 | |
1FSW-24-45X6.5 | 1.1 / 2 | 45X6.5 | 45 | ||||
1FSW-24-48X8 | 1.1 / 2 | 48X8 | 48 | ||||
1FSW-24-50X8 | 1.1 / 2 | 50X8 | 50 | ||||
1FSW-32-60X8 | 2 | 60X8 | 79.4 | 60 | 12.6 | 58 | |
1FSW-32-60X10 | 2 | 60X10 | 60 |
