Tipi ta 'Prodott: 1JFL9 Flange idrawliċi JIC maskili ta' l-adapter 1JFL9
Istandards tal-Industrija: ISO 6162, SAE J518, SAE J514, ISO 8434-2.
Konnessjoni tal-istil E sa F: 90 ° ELBOW JIC MALE 74 ° KONĊ / L-SERJA L-FLANKA ISO 6162-1
Forma: minkeb
Klassifikazzjoni tal-pressjoni operattiva: kodiċi SAE 61 huwa 2.5 sa 31.5 Mpa; Il-kodiċi SAE 62 huwa 40 Mpa.
Materjal tal-Fittings: Brass; Azzar tal-karbonju; Stainless Steel
Applikazzjoni: Tagħmir Agrikoltura, Proċess tal-Karozzi, Trasferiment Kimiku, Tagħmir tal-Kostruzzjoni, Trasferiment tal-Fjuwil, Idrawliku, Tagħmir tal-Manifattura, Baħar, Immaniġġjar tal-Materjal, Tagħmir Mobbli, Qasam taż-Żejt, Ippakkjar, Trasport

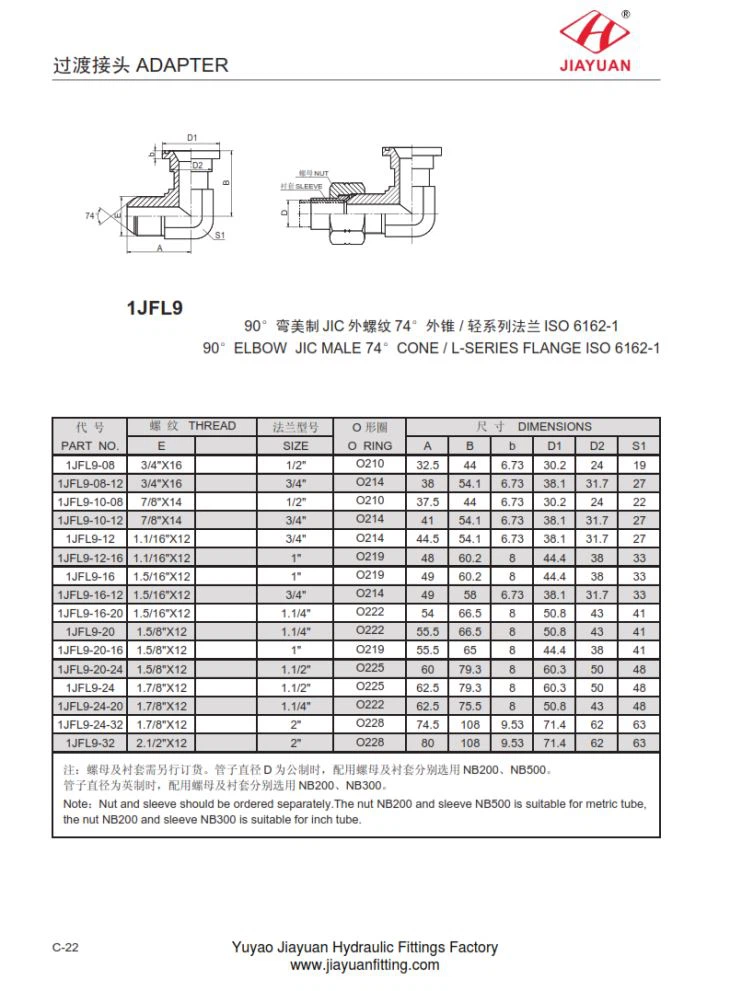

1JFL9 Minkeb 74 L-adapter tal-flanġ tas-serje L ISO 6162 Dimensjoni Tabella tad-Daqs tal-grafika kif ġej
PARTI NRU. | TAN | O O BIRJA | Dimensjonijiet | |||||||
E | DAQS | A | B | b | D1 | D2 | S1 | |||
1JFL9-08 | 3/4 "X16 | 1/2 " | O210 | 32.5 | 44 | 6.73 | 30.2 | 24 | 19 | |
1JFL9-08-12 | 3/4 "X16 | 3/4 " | O214 | 38 | 54.1 | 6.73 | 38.1 | 31.7 | 27 | |
1JFL9-10-08 | 7/8 "X14 | 1/2 " | O210 | 37.5 | 44 | 6.73 | 30.2 | 24 | 22 | |
1JFL9-10-12 | 7/8 "X14 | 3/4 " | O214 | 41 | 54.1 | 6.73 | 38.1 | 31.7 | 27 | |
1JFL9-12 | 1.1 / 16 "X12 | 3/4 " | O214 | 44.5 | 54.1 | 6.73 | 38.1 | 31.7 | 27 | |
1JFL9-12-16 | 1.1 / 16 "X12 | 1 " | O219 | 48 | 60.2 | 8 | 44.4 | 38 | 33 | |
1JFL9-16 | 1.5 / 16 "X12 | 1 " | O219 | 49 | 60.2 | 8 | 44.4 | 38 | 33 | |
1JFL9-16-12 | 1.5 / 16 "X12 | 3/4 " | O214 | 49 | 58 | 6.73 | 38.1 | 31.7 | 33 | |
1JFL9-16-20 | 1.5 / 16 "X12 | 1.1 / 4 " | O222 | 54 | 66.5 | 8 | 50.8 | 43 | 41 | |
1JFL9-20 | 1.5 / 8 "X12 | 1.1 / 4 " | O222 | 55.5 | 66.5 | 8 | 50.8 | 43 | 41 | |
1JFL9-20-16 | 1.5 / 8 "X12 | 1 " | O219 | 55.5 | 65 | 8 | 44.4 | 38 | 41 | |
1JFL9-20-24 | 1.5 / 8 "X12 | 1.1 / 2 " | O225 | 60 | 79.3 | 8 | 60.3 | 50 | 48 | |
1JFL9-24 | 1.7 / 8 "X12 | 1.1 / 2 " | O225 | 62.5 | 79.3 | 8 | 60.3 | 50 | 48 | |
1JFL9-24-20 | 1.7 / 8 "X12 | 1.1 / 4 " | O222 | 62.5 | 75.5 | 8 | 50.8 | 43 | 48 | |
1JFL9-24-32 | 1.7 / 8 "X12 | 2 " | O228 | 74.5 | 108 | 9.53 | 71.4 | 62 | 63 | |
1JFL9-32 | 2.1 / 2 "X12 | 2 " | O228 | 80 | 108 | 9.53 | 71.4 | 62 | 63 |
