Dimensjonijiet u katalogu tat-tagħmir tal-pajpijiet BSP huwa l-istess minn fornituri differenti.
Tipi ta 'Materjal ta' tagħmir tal-pajpijiet bħal azzar li ma jissaddadx, ram isfar u plastik.
Applikazzjoni fittings tal-pajpijiet tal-ħajt tar-Renju Unit u l-Istati Uniti BSPP fil-fittings tal-pajpijiet ta 'strumentazzjoni u fittings tal-pajpijiet industrijali.
Adapters tal-pajpijiet BSP għall-weldjatura tal-sokit, maskili NPT, SAE ORB, maskili BSPT, maskili ORFS, konnettur tubu DIN 2353, o-ring metriku eċċ.
Forma ta 'adapter tal-pajpijiet BSPP bħal dritta, minkeb, Tee, Cross, Reducer.
Aħna wkoll jistgħu jfornu sa 2 pulzieri bsp fittings.

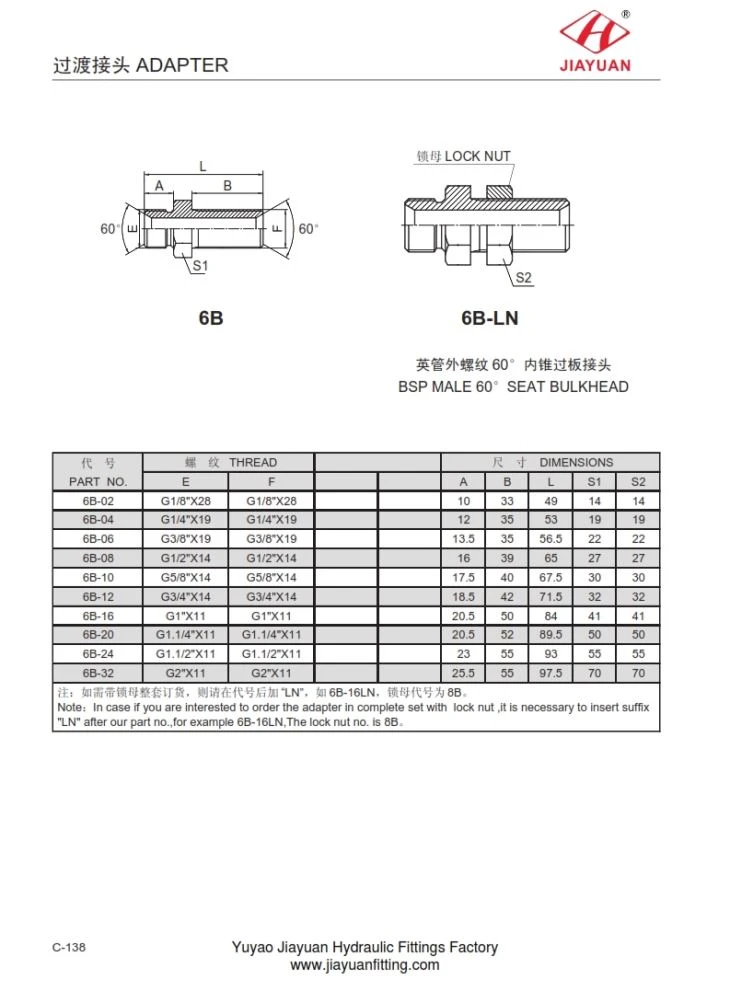

6B-LN BSP MALE 60 ° BULKHEAD SEAT tal-pajp tal-mappa tal-konnettur kif ġej:
PARTI NRU. | TAN | Dimensjonijiet | |||||
E | F | A | B | L | S1 | S2 | |
6B-02 | G1 / 8 "X28 | G1 / 8 "X28 | 10 | 33 | 49 | 14 | 14 |
6B-04 | G1 / 4 "X19 | G1 / 4 "X19 | 12 | 35 | 53 | 19 | 19 |
6B-06 | G3 / 8 "X19 | G3 / 8 "X19 | 13.5 | 35 | 56.5 | 22 | 22 |
6B-08 | G1 / 2 "X14 | G1 / 2 "X14 | 16 | 39 | 65 | 27 | 27 |
6B-10 | G5 / 8 "X14 | G5 / 8 "X14 | 17.5 | 40 | 67.5 | 30 | 30 |
6B-12 | G3 / 4 "X14 | G3 / 4 "X14 | 18.5 | 42 | 71.5 | 32 | 32 |
6B-16 | G1 "X11 | G1 "X11 | 20.5 | 50 | 84 | 41 | 41 |
6B-20 | G1.1 / 4 "X11 | G1.1 / 4 "X11 | 20.5 | 52 | 89.5 | 50 | 50 |
6B-24 | G1.1 / 2 "X11 | G1.1 / 2 "X11 | 23 | 55 | 93 | 55 | 55 |
6B-32 | G2 "X11 | G2 "X11 | 25.5 | 55 | 97.5 | 70 | 70 |
