Kategorija tal-prodott: Tagħmir idrawliku standard JIS għal diversi adapters
Id-daqs tal-ħajt JIS huwa prodott skont: Ħjut BSPP: ISO 228-1 G, JIS B0202; Ħjut BSPT: ISO 7/1, JIS B0203.
Il-fittings JIS huma ddisinjati bi flare ta ’30 ° u konnessjonijiet tal-konu ta’ 60 ° għat-truf tal-pajp, użati wkoll bħala adapters tal-pajp.
Għat-tipi tal-pajpijiet tal-ħajt: port JIS B2351, Npt, SAE ORB adapter eċċ.

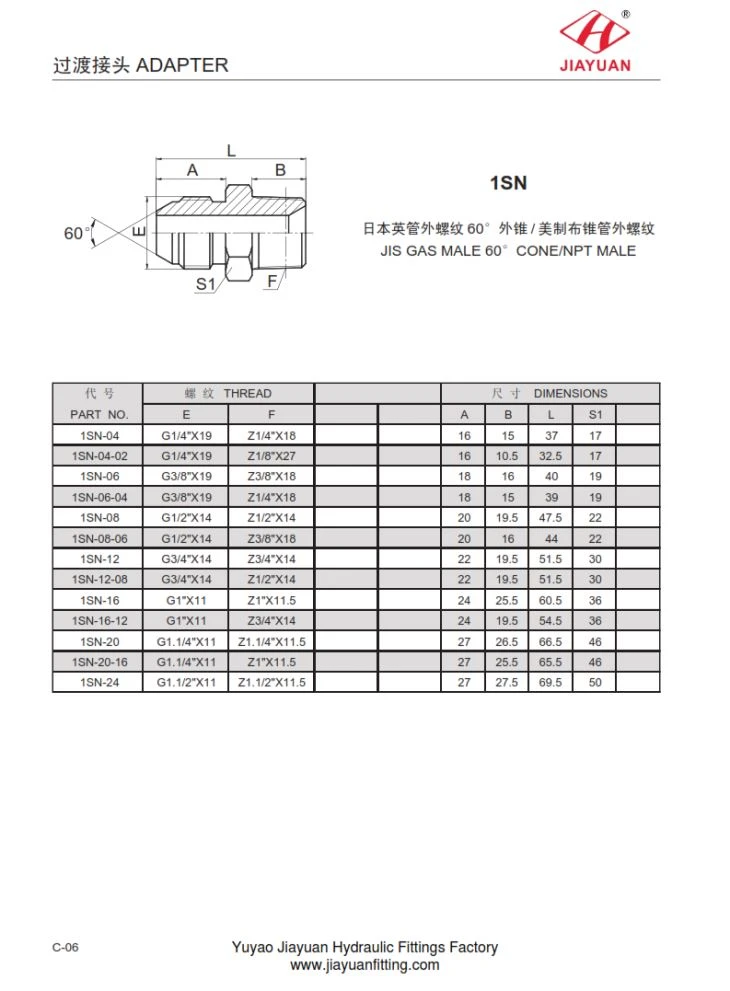

1SN JIS GALL MALE 60 CONE NPT MALE speċifikazzjonijiet kif ġej:
PARTI LE. | TAN | Dimensjonijiet | ||||||
E | F | A | B | L | S1 | |||
1SN-04 | G1 / 4 "X19 | Z1 / 4 "X18 | 16 | 15 | 37 | 17 | ||
1SN-04-02 | G1 / 4 "X19 | Z1 / 8 "X27 | 16 | 10.5 | 32.5 | 17 | ||
1SN-06 | G3 / 8 "X19 | Z3 / 8 "X18 | 18 | 16 | 40 | 19 | ||
1SN-06-04 | G3 / 8 "X19 | Z1 / 4 "X18 | 18 | 15 | 39 | 19 | ||
1SN-08 | G1 / 2 "X14 | Z1 / 2 "X14 | 20 | 19.5 | 47.5 | 22 | ||
1SN-08-06 | G1 / 2 "X14 | Z3 / 8 "X18 | 20 | 16 | 44 | 22 | ||
1SN-12 | G3 / 4 "X14 | Z3 / 4 "X14 | 22 | 19.5 | 51.5 | 30 | ||
1SN-12-08 | G3 / 4 "X14 | Z1 / 2 "X14 | 22 | 19.5 | 51.5 | 30 | ||
1SN-16 | G1 "X11 | Z1 "X11.5 | 24 | 25.5 | 60.5 | 36 | ||
1SN-16-12 | G1 "X11 | Z3 / 4 "X14 | 24 | 19.5 | 54.5 | 36 | ||
1SN-20 | G1.1 / 4 "X11 | Z1.1 / 4 "X11.5 | 27 | 26.5 | 66.5 | 46 | ||
1SN-20-16 | G1.1 / 4 "X11 | Z1 "X11.5 | 27 | 25.5 | 65.5 | 46 | ||
1SN-24 | G1.1 / 2 "X11 | Z1.1 / 2 "X11.5 | 27 | 27.5 | 69.5 | 50 | ||
