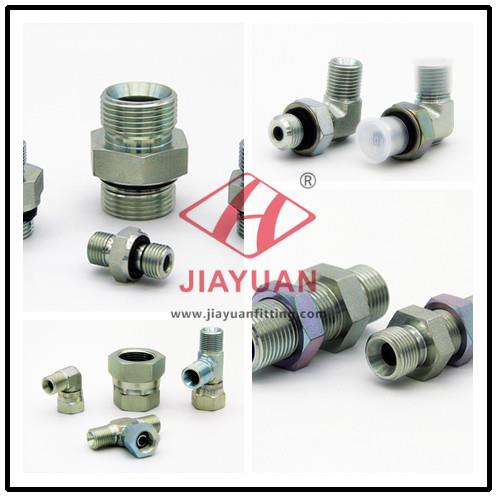

BSP maskili Metrik 60 siġill marbut mal-kon
Il-katalgu tal-fittings BSP huwa popluare fir-Renju Unit, l-Irlanda, il-Kanada, l-Istati Uniti eċċ.
It-tagħmir kollu tal-koni BSP 60 huwa spjegat mill-BS5200 daqs l-istandard ISO 8434-6.
Id-daqs tat-tabella tad-daqs tal-ħajt BSPP huwa G 1/8, G1 / 4, G1 / 2, G3 / 4, G3 / 8, G5 / 8, G1, G1-1 / 4, G1-1 / 2, G2, G2- 1/2, G3 eċċ.
BSP huwa pajp standard Brittaniku b'għamla ta '55 grad.
Il-ħajt BSPP huwa skond l-istandards ISO 228 u AS 1722.2.
Gwida tal-ħajt BSPP għal ħafna tipi ta 'siġillar bħal BSPP 60 ° kon għal tubu tas-sedil konnettur, port BSPP bis-siġill imwaħħal, port BSPP bis-siġill ED, BSPP oring + żamma taċ-ċirku tat-tip G, BSPP o-ring aġġustabbli tat-tip H, wiċċ tat-tqattigħ BSPP Siġill tat-Tip B.
Adattaturi tat-twaħħil tal-pajpijiet BSPP għal ħafna truf bħal BSPT maskili, maskili ORFS, metrika ISO 6149-3 stud, maskili JIC 74 kon, Komatsu metrika 60 kon, maskili NPT, SAE ORB ISO 11926-3, tagħmir ta 'weldjatura butt, femminili JIC 37cone, ORFS femminili eċċ.
1BM BSP MALE DOPPJU UŻU GĦAL 60 ° CONE SEAT JEW SIĠILL BONDED / METALL MALE DOUBLE UŻU GĦAL 60 ° CONE SEAT JEW SIGUR BONDED Dimensjonijiet chart kif ġej:
PA RT N O. | T HR EA D | DIM E N S I O NS | |||||
E | F | A | B | L | S 1 | ||
1 B M - 02 - 10 | G 1/8 " X 28 | M10 X 1 | 10 | 8 | 25 | 14 | |
1 B M - 02 - 12 | G 1/8 " X 28 | M12 X 1.5 | 10 | 10 | 27 | 17 | |
1 B M - 04 - 12 | G 1/4 " X 19 | M12 X 1.5 | 12 | 10 | 29 | 19 | |
1 B M - 04 - 14 | G 1/4 " X 19 | M14 X 1.5 | 12 | 11 | 30 | 19 | |
1 B M - 04 - 16 | G 1/4 " X 19 | M16 X 1.5 | 12 | 12 | 33 | 22 | |
1 B M - 04 - 18 | G 1/4 " X 19 | M18 X 1.5 | 12 | 12 | 33 | 24 | |
1 B M - 06 - 10 | G 3/8 " X 19 | M10 X 1 | 13.5 | 8 | 29.5 | 22 | |
1 B M - 06 - 12 | G 3/8 " X 19 | M12 X 1.5 | 13.5 | 10 | 31.5 | 22 | |
1 B M - 06-14 | G 3/8 " X 19 | M14 X 1.5 | 13.5 | 11 | 32.5 | 22 | |
1 B M - 06 - 16 | G 3/8 " X 19 | M16 X 1.5 | 13.5 | 12 | 33.5 | 22 | |
1 B M - 06 - 18 | G 3/8 " X 19 | M18 X 1.5 | 13.5 | 12 | 34.5 | 24 | |
1 B M - 06 - 20 | G 3/8 " X 19 | M20 X 1.5 | 13.5 | 14 | 38.5 | 27 | |
1 B M - 06 - 22 | G 3/8 " X 19 | M22 X 1.5 | 13.5 | 14 | 38.5 | 27 | |
1 B M - 08 - 14 | G 1/2 " X 14 | M14 X 1.5 | 16 | 11 | 38 | 27 | |
1 B M - 08 - 16 | G 1/2 " X 14 | M16 X 1.5 | 16 | 12 | 39 | 27 | |
1 B M - 08 - 18 | G 1/2 " X 14 | M18 X 1.5 | 16 | 12 | 39 | 27 | |
1 B M - 08 - 20 | G 1/2 " X 14 | M20 X 1.5 | 16 | 14 | 41 | 27 | |
1 B M - 08 - 22 | G 1/2 " X 14 | M22 X 1.5 | 16 | 14 | 41 | 27 | |
1 B M - 08 - 24 | G 1/2 " X 14 | M24 X 1.5 | 16 | 14 | 41 | 30 | |
1 B M - 08 - 26 | G 1/2 " X 14 | M26 X 1.5 | 16 | 16 | 44 | 32 | |
1 B M - 08 - 27D | G 1/2 " X 14 | M27 X 1.5 | 16 | 16 | 44 | 32 | |
1 B M - 08 - 30 | G 1/2 " X 14 | M30 X 1.5 | 16 | 18 | 45 | 36 | |
1 B M - 10 - 22 | G 5/8 " X 14 | M22 X 1.5 | 17.5 | 14 | 42.5 | 30 | |
1 B M - 10 - 26 | G 5/8 " X 14 | M26 X 1.5 | 17.5 | 16 | 45.5 | 32 | |
1 B M - 12 - 18 | G 3/4 " X 14 | M18 X 1.5 | 18.5 | 12 | 42.5 | 32 | |
1 B M - 12 - 20 | G 3/4 " X 14 | M20 X 1.5 | 18.5 | 14 | 44.5 | 32 | |
1 B M - 12 - 22 | G 3/4 " X 14 | M22 X 1.5 | 18.5 | 14 | 44.5 | 32 | |
1 B M - 12 - 24 | G 3/4 " X 14 | M24 X 1.5 | 18.5 | 14 | 44.5 | 32 | |
1 B M - 12 - 26 | G 3/4 " X 14 | M26 X 1.5 | 18.5 | 16 | 46.5 | 32 | |
1 B M - 12 - 27 | G 3/4 " X 14 | M27 X 2 | 18.5 | 16 | 46.5 | 32 | |
1 B M - 12 - 27D | G 3/4 " X 14 | M27 X 1.5 | 18.5 | 16 | 46.5 | 32 | |
1 B M - 12 - 30 | G 3/4 " X 14 | M30 X 2 | 18.5 | 18 | 47.5 | 36 | |
1 B M - 12 - 30D | G 3/4 " X 14 | M30 X 1.5 | 18.5 | 18 | 47.5 | 36 | |
1 B M - 16 - 14 | G 1 " X 11 | M14 X 1.5 | 20.5 | 11 | 45.5 | 41 | |
1 B M - 16 - 22 | G 1 " X 11 | M22 X 1.5 | 20.5 | 14 | 48.5 | 41 | |
1 B M - 16 - 26 | G 1 " X 11 | M26 X 1.5 | 20.5 | 16 | 50.5 | 41 | |
1 B M - 16 - 30 | G 1 " X 11 | M30 X 2 | 20.5 | 18 | 53 | 41 | |
1 B M - 16 - 30D | G 1 " X 11 | M30 X 1.5 | 20.5 | 18 | 53 | 41 | |
