Il-katalgu tal-fittings BSP huwa popluare fir-Renju Unit, l-Irlanda, il-Kanada, l-Istati Uniti eċċ.
It-tagħmir kollu tal-koni BSP 60 huwa spjegat mill-BS5200 daqs l-istandard ISO 8434-6.
Id-daqs tat-tabella tad-daqs tal-ħajt BSPP huwa G 1/8, G1 / 4, G1 / 2, G3 / 4, G3 / 8, G5 / 8, G1, G1-1 / 4, G1-1 / 2, G2, G2- 1/2, G3 eċċ.
BSP huwa pajp standard Brittaniku b'għamla ta '55 grad.
Il-ħajt BSPP huwa skond l-istandards ISO 228 u AS 1722.2.
Gwida tal-ħajt BSPP għal ħafna tipi ta 'siġillar bħal BSPP 60 ° kon għal tubu tas-sedil konnettur, port BSPP bis-siġill imwaħħal, port BSPP bis-siġill ED, BSPP oring + żamma taċ-ċirku tat-tip G, BSPP o-ring aġġustabbli tat-tip H, wiċċ tat-tqattigħ BSPP Siġill tat-Tip B.
Adattaturi tat-twaħħil tal-pajpijiet BSPP għal ħafna truf bħal BSPT maskili, maskili ORFS, metrika ISO 6149-3 stud, maskili JIC 74 kon, Komatsu metrika 60 kon, maskili NPT, SAE ORB ISO 11926-3, tagħmir ta 'weldjatura butt, femminili JIC 37cone, ORFS femminili eċċ.

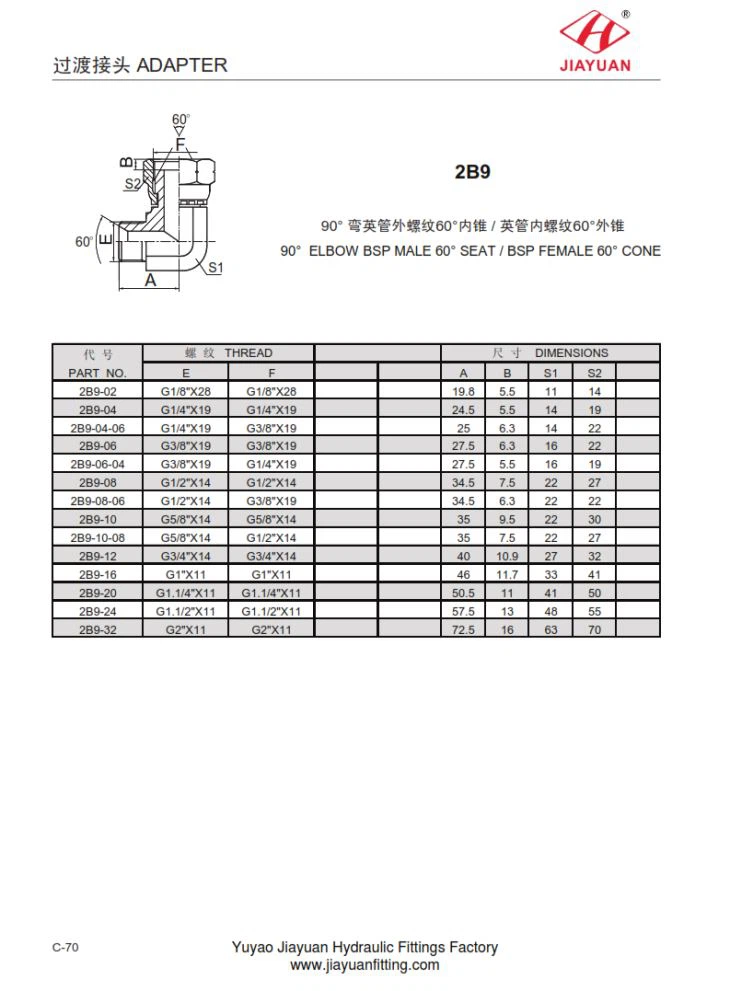

2B9 90 ° ELBOW BSP MALE 60 ° SEAT / BSP FEMALE 60 ° CONE Fittings tal-qisien daqs daqs kif ġej:
PA RT N O. | T HR EA D | DIM E N S I O NS | ||||||
E | F | A | B | S 1 | S 2 | |||
2 B 9 - 02 | G 1/8 " X 28 | G 1/8 " X 28 | 19.8 | 5.5 | 11 | 14 | ||
2 B 9 - 04 | G 1/4 " X 19 | G 1/4 " X 19 | 24.5 | 5.5 | 14 | 19 | ||
2 B 9 - 04 - 06 | G 1/4 " X 19 | G 3/8 " X 19 | 25 | 6.3 | 14 | 22 | ||
2 B 9 - 06 | G 3/8 " X 19 | G 3/8 " X 19 | 27.5 | 6.3 | 16 | 22 | ||
2 B 9 - 06 - 04 | G 3/8 " X 19 | G 1/4 " X 19 | 27.5 | 5.5 | 16 | 19 | ||
2 B 9 - 08 | G 1/2 " X 14 | G 1/2 " X 14 | 34.5 | 7.5 | 22 | 27 | ||
2 B 9 - 08 - 06 | G 1/2 " X 14 | G 3/8 " X 19 | 34.5 | 6.3 | 22 | 22 | ||
2 B 9 - 10 | G 5/8 " X 14 | G 5/8 " X 14 | 35 | 9.5 | 22 | 30 | ||
2 B 9 - 10 - 08 | G 5/8 " X 14 | G 1/2 " X 14 | 35 | 7.5 | 22 | 27 | ||
2 B 9 - 12 | G 3/4 " X 14 | G 3/4 " X 14 | 40 | 10.9 | 27 | 32 | ||
2 B 9 - 16 | G 1 " X 11 | G 1 " X 11 | 46 | 11.7 | 33 | 41 | ||
2 B 9 - 20 | G 1.1 / 4 " X 11 | G 1.1 / 4 " X 11 | 50.5 | 11 | 41 | 50 | ||
2 B 9 - 24 | G 1.1 / 2 " X 11 | G 1.1 / 2 " X 11 | 57.5 | 13 | 48 | 55 | ||
2 B 9 - 32 | G 2 " X 11 | G 2 " X 11 | 72.5 | 16 | 63 | 70 | ||
