Konnettur maskili ORFS tal-kon maskili BSP
Il-katalgu tal-fittings BSP huwa popluare fir-Renju Unit, l-Irlanda, il-Kanada, l-Istati Uniti eċċ.
It-tagħmir kollu tal-koni BSP 60 huwa spjegat mill-BS5200 daqs l-istandard ISO 8434-6.
Id-daqs tat-tabella tad-daqs tal-ħajt BSPP huwa G 1/8, G1 / 4, G1 / 2, G3 / 4, G3 / 8, G5 / 8, G1, G1-1 / 4, G1-1 / 2, G2, G2- 1/2, G3 eċċ.
BSP huwa pajp standard Brittaniku b'għamla ta '55 grad.
Il-ħajt BSPP huwa skond l-istandards ISO 228 u AS 1722.2.
Gwida tal-ħajt BSPP għal ħafna tipi ta 'siġillar bħal BSPP 60 ° kon għal tubu tas-sedil konnettur, port BSPP b'siġill imwaħħal, port BSPP bis-siġill ED, BSPP oring + żamma ta' ċirku tat-tip G, BSPP o-ring aġġustabbli tat-tip H, wiċċ ta 'qtugħ BSPP Siġill tat-Tip B.
Adattaturi tat-twaħħil tal-pajpijiet BSPP għal ħafna truf bħal BSPT maskili, maskili ORFS, Metric ISO 6149-3 stud, maskili JIC 74 kon, Komatsu metrika 60 kon, maskili NPT, SAE ORB ISO 11926-3, tubu tal-weldjatura butt, femminili JIC 37cone, ORFS femminili eċċ.

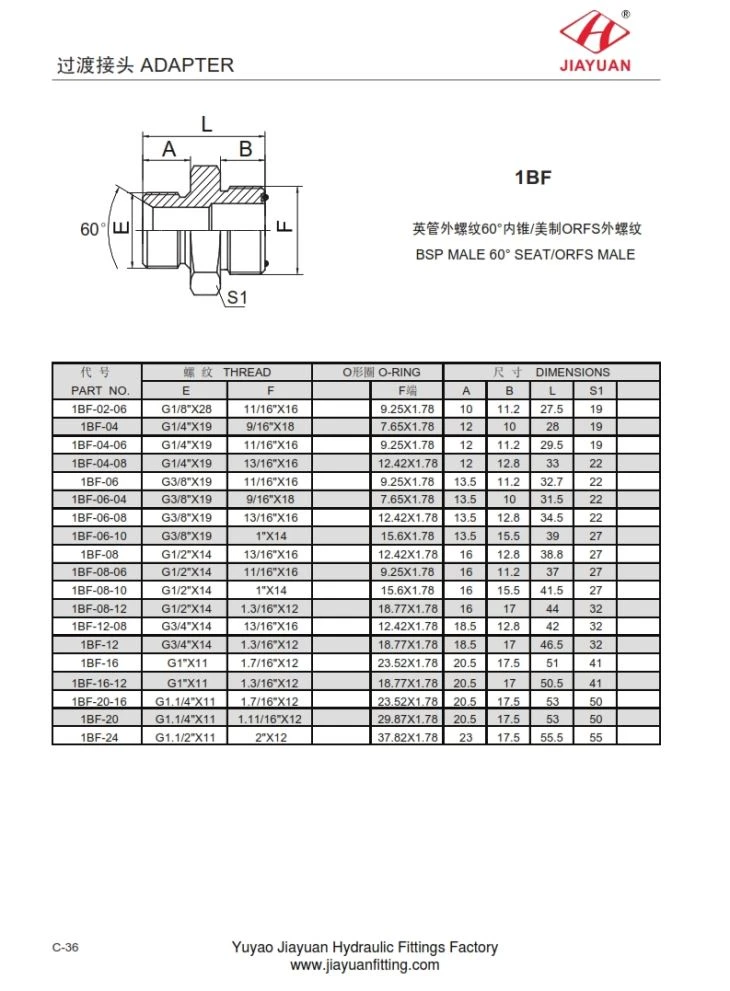

1BF BSP MALE 60 ° SEAT / ORFS MALE ta 'daqsijiet tal-grafika tad-daqs kif ġej:
PAR T LE . | THREA D | O-RIN G | D-DIMENSJONI | ||||||
E | F | F | A | B | L | S 1 | |||
1BF-02-0 6 | G1 / 8 "X2 8 | 11/16 "X1 6 | 8.25X1.7 8 | 1 0 | 11. 2 | 27. 5 | 1 9 | ||
1BF-0 4 | G1 / 4 "X1 9 | 9/16 "X1 8 | 8.65X1.7 8 | 1 2 | 1 0 | 2 8 | 1 9 | ||
1BF-04-0 6 | G1 / 4 "X1 9 | 11/16 "X1 6 | 8.25X1.7 8 | 1 2 | 11. 2 | 29. 5 | 1 9 | ||
1BF-04-0 8 | G1 / 4 "X1 9 | 13/16 "X1 6 | 8 12.42X1.7 | 1 2 | 12. 8 | 3 3 | 2 2 | ||
1BF-0 6 | G3 / 8 "X1 9 | 11/16 "X1 6 | 8.25X1.7 8 | 13. 5 | 11. 2 | 32. 7 | 2 2 | ||
1BF-06-0 4 | G3 / 8 "X1 9 | 9/16 "X1 8 | 8.65X1.7 8 | 13. 5 | 1 0 | 31. 5 | 2 2 | ||
1BF-06-0 8 | G3 / 8 "X1 9 | 13/16 "X1 6 | 8 12.42X1.7 | 13. 5 | 12. 8 | 34. 5 | 2 2 | ||
1BF-06-1 0 | G3 / 8 "X1 9 | 1 "X1 4 | 8.6X1.7 8 | 13. 5 | 15. 5 | 3 9 | 2 7 | ||
1BF-0 8 | G1 / 2 "X1 4 | 13/16 "X1 6 | 8 12.42X1.7 | 1 6 | 12. 8 | 38. 8 | 2 7 | ||
1BF-08-0 6 | G1 / 2 "X1 4 | 11/16 "X1 6 | 8.25X1.7 8 | 1 6 | 11. 2 | 3 7 | 2 7 | ||
1BF-08-1 0 | G1 / 2 "X1 4 | 1 "X1 4 | 8.6X1.7 8 | 1 6 | 15. 5 | 41. 5 | 2 7 | ||
1BF-08-1 2 | G1 / 2 "X1 4 | 1.3 / 16 "X1 2 | 8.77X1.7 8 | 1 6 | 1 7 | 4 4 | 3 2 | ||
1BF-12-0 8 | G3 / 4 "X1 4 | 13/16 "X1 6 | 8 12.42X1.7 | 18. 5 | 12. 8 | 4 2 | 3 2 | ||
1BF-1 2 | G3 / 4 "X1 4 | 1.3 / 16 "X1 2 | 8.77X1.7 8 | 18. 5 | 1 7 | 46. 5 | 3 2 | ||
1BF-1 6 | G1 "X1 1 | 1.7 / 16 "X1 2 | 8.5.5XX1.7 | 20. 5 | 17. 5 | 5 1 | 4 1 | ||
1BF-16-1 2 | G1 "X1 1 | 1.3 / 16 "X1 2 | 8.77X1.7 8 | 20. 5 | 1 7 | 50. 5 | 4 1 | ||
1BF-20-1 6 | G1.1 / 4 "X1 1 | 1.7 / 16 "X1 2 | 8.5.5XX1.7 | 20. 5 | 17. 5 | 5 3 | 5 0 | ||
1BF-2 0 | G1.1 / 4 "X1 1 | 1.11 / 16 "X1 2 | 29.87X1.7 8 | 20. 5 | 17. 5 | 5 3 | 5 0 | ||
1BF-2 4 | G1.1 / 2 "X1 1 | 2 "X1 2 | 37.82X1.7 8 | 2 3 | 17. 5 | 55. 5 | 5 5 | ||
