Kategorija tal-prodott: Tagħmir tal-karozzi SAE J512 u J513 ta '45 grad tat-tip flared.
Grafika tad-daqs tal-ħajta UNF: minn UNF 5/16 "sa UNF 1-3 / 8". Skond l-istandard ANSI B1.1 FED-STD-H28 / 2.
Tipi ta 'materjal ta' tagħmir ta 'flare SAE ta' 45 grad kif ġej: azzar li ma jissaddadx, ram isfar u azzar tal-karbonju.
Għat-tipi tal-pajpijiet: adapter Npt, adapters BSPT.

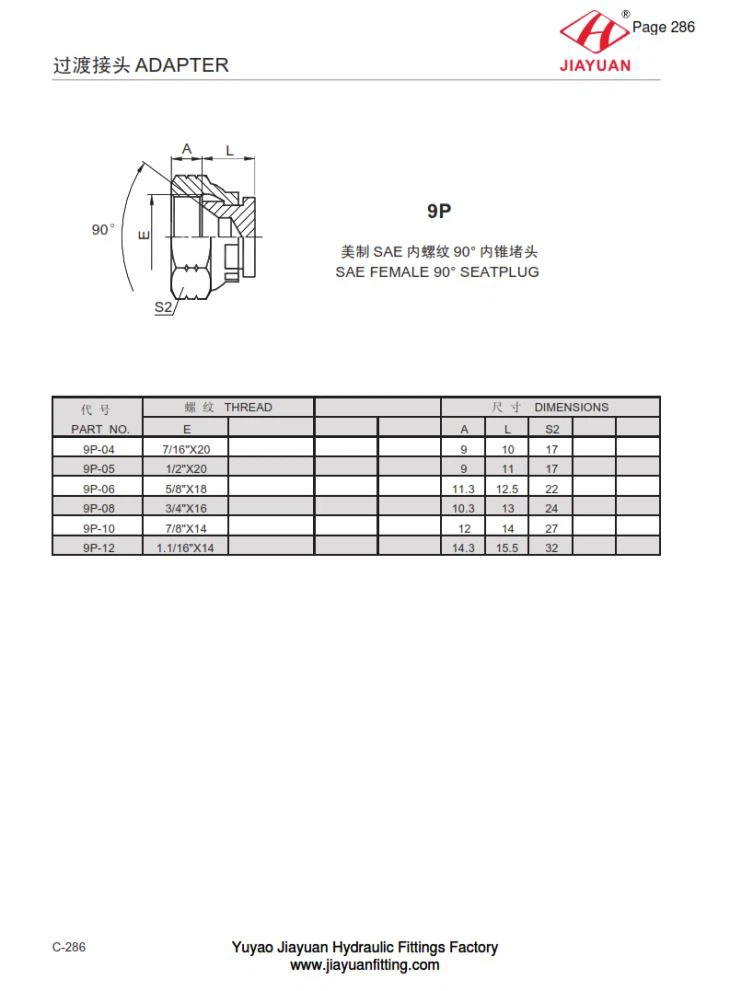

9P SAE FEMALE 90 ° SEATPLUG Tabella tad-dimensjonijiet kif ġej:
PAR T LE . | THREA D | S- DIMENSJONI | |||||
E | A | L | S 2 | ||||
9P-0 4 | 7/16 "X2 0 | 9 | 1 0 | 1 7 | |||
9P-0 5 | 1/2 "X2 0 | 9 | 1 1 | 1 7 | |||
9P-0 6 | 5/8 "X1 8 | 11. 3 | 12. 5 | 2 2 | |||
9P-0 8 | 3/4 "X1 6 | 10. 3 | 1 3 | 2 4 | |||
9P-1 0 | 7/8 "X1 4 | 1 2 | 1 4 | 2 7 | |||
9P-1 2 | 1.1 / 16 "X1 4 | 14. 3 | 15. 5 | 3 2 | |||
